20kg Load Cell
Four leads, easy to use.
5-10V drive voltage applied, the force is directly output as a voltage change signal.
Dimensions: 12.7mm * 12.7mm * 80mm
Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label.
Particular attention must not directly push the white plastic cover part, so as not to damage the sensor.
Connection
Red to E+
Black to E-
Green to A+
White to A-

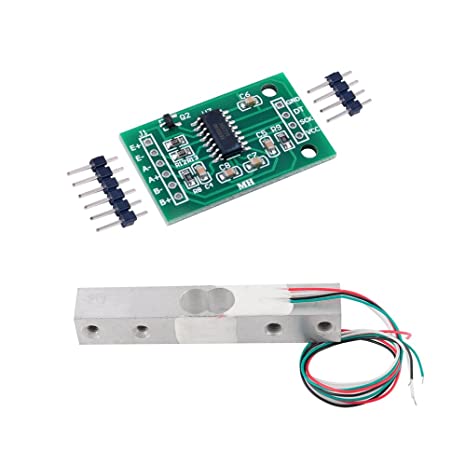

HX711 AD Weight Module
This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.
Simple digital control and serial interface: pin-driven controlsno programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
